Rail

From Veg Mgmt to to Branding Identification to Change Detection, NV5 Geospatial excels at providing custom solutions for the rail industry.

Get on the right track with geospatial rail solutions

Contact Us
Know your rail corridor in a whole new way. INSITE is an interactive cloud application that manages, integrates, and visualizes massive data volumes via maps, tables, charts, photos, and 3D visualization.

Experience data immersion via INSITE

Learn More
Optimize operations by identifying clearance hazards without a site visit, and make more informed decisions about when and where to deploy clearing crews. Our best in class utility vegetation management solutions include lidar-based clearance detection analytics, volumetric analysis, hazard tree detection, ROW tree inventory, change detection, species identification, predictive analytics, and more
https://vimeo.com/162480247

Data-driven decisions for VM

Learn More

NV5 Geospatial is the go-to partner for organizations that want to map, model, and better manage their world. NV5 Geospatial is a full-service, remote sensing firm specializing in data generation, integration, and analysis to advance business goals for clients worldwide.  We are a solutions-based company focused on solving our rail client’s engineering, operation, regulatory, and maintenance challenges through the use of remote sensing technology.  We employ sensor and  platform technologies, including lidar, multi-spectral imagery, and thermal imagery on UAVs, trucks, hi-rail vehicles, railcar, helicopters, and fixed-wing aircraft for applications such as siting, vegetation management, track alignment, GIS & Asset Management, and engineering & design.

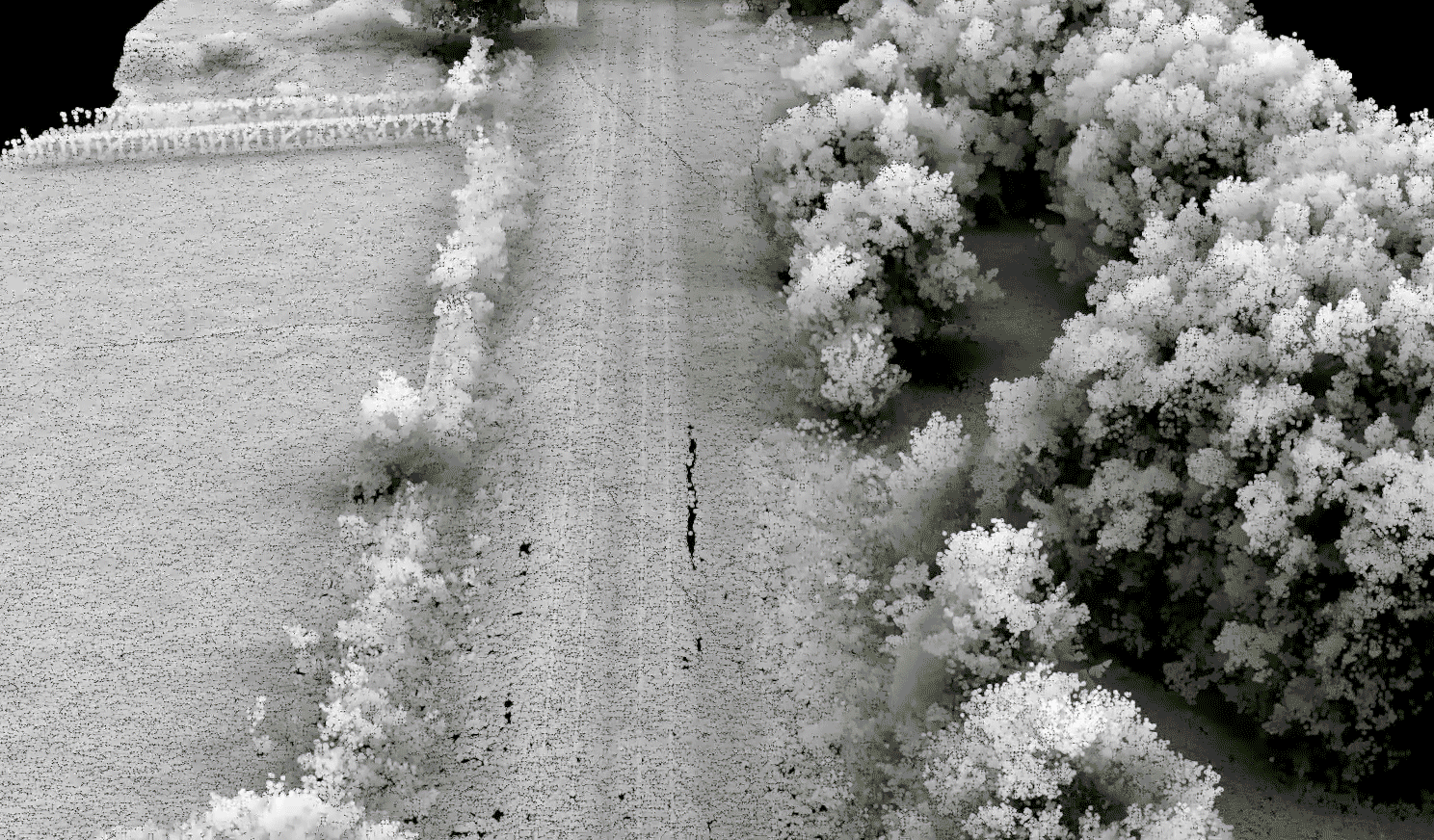

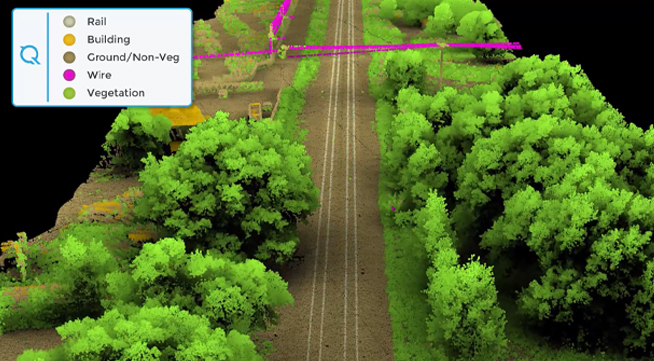

Vegetation Management

Save time and money by identifying clearance hazards without a site visit and make more informed decisions about when and where to deploy clearing crews. Our best in class utility vegetation management solutions include lidar-based clearance detection analytics, volumetric analysis, hazard tree detection, ROW tree inventory, change detection, species identification, predictive analytics, and our INSITE cloud application.

Rail Temperature Detection

NV5 Geospatial’s custom Dual Long Wave InfraRed thermal sensor solution takes highly accurate measurements of the rail web along the entire track. The system consists of two, high frame rate (60Hz), exposure synchronized, radiometric thermal cameras designed to image rail at close proximity. Deliverables provide a more accurate way for rail companies to understand environmental effects and limitations to their system.

Rail Branding Detection

NV5 Geospatial’s rail branding solution utilizes proprietary sensor technology with great depth sensitivity needed to derive recognize characters from rail web markings to determine and map rail segments manufacture and weight. NV5 Geospatial’s solution does not utilize passive imaging systems therefore no light or illumination is required. Additionally, by design the sensor is able to detect alpha numeric characters even when corrosion and weathering is present. NV5 Geospatial can delivery sensor data, character recognition results, and map these results to provide clients with a better understanding of asset type, location, weight restrictions, and improve tracking and mitigation of defects across their entire system.

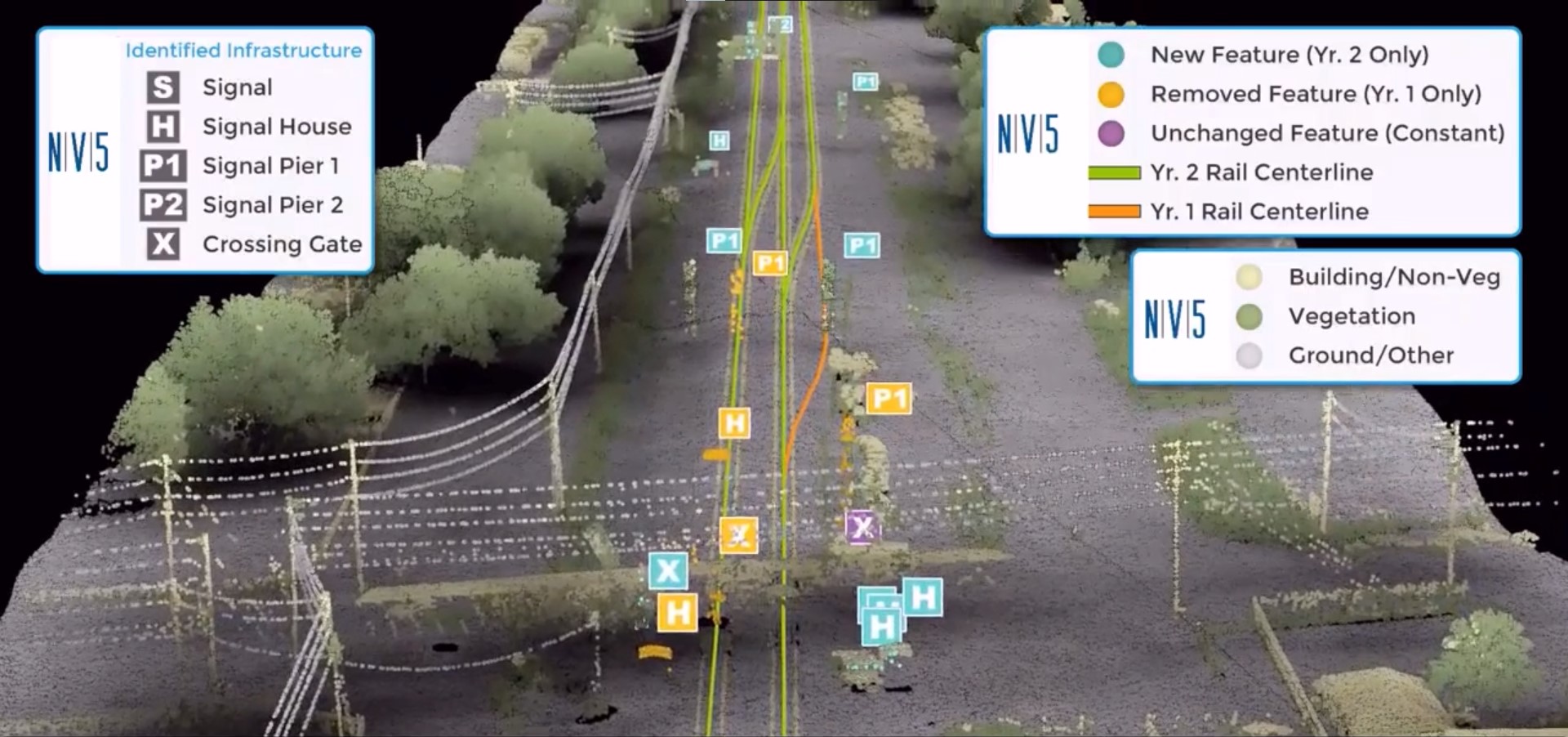

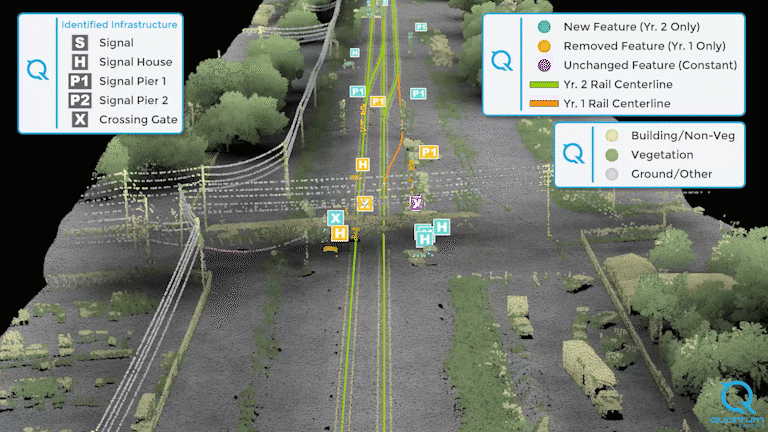

Change Detection to Support Asset Management, GIS, & PTC

NV5 Geospatial change detection solution utilized client or NV5 Geospatial acquired lidar to perform automated change detection analysis. NV5 Geospatial solutions can leverage rail client’s existing GIS database to geofence assets to interest eliminating undesired change detection results caused by branches swaying in the wind, animals, and other false positives. Data can be processed and delivered on hard drives or provided within NV5 Geospatial’s cloud mapping solution INSITE. Client’s can review and verify the result in INSITE during rain or shine from the comfort of their desktop.

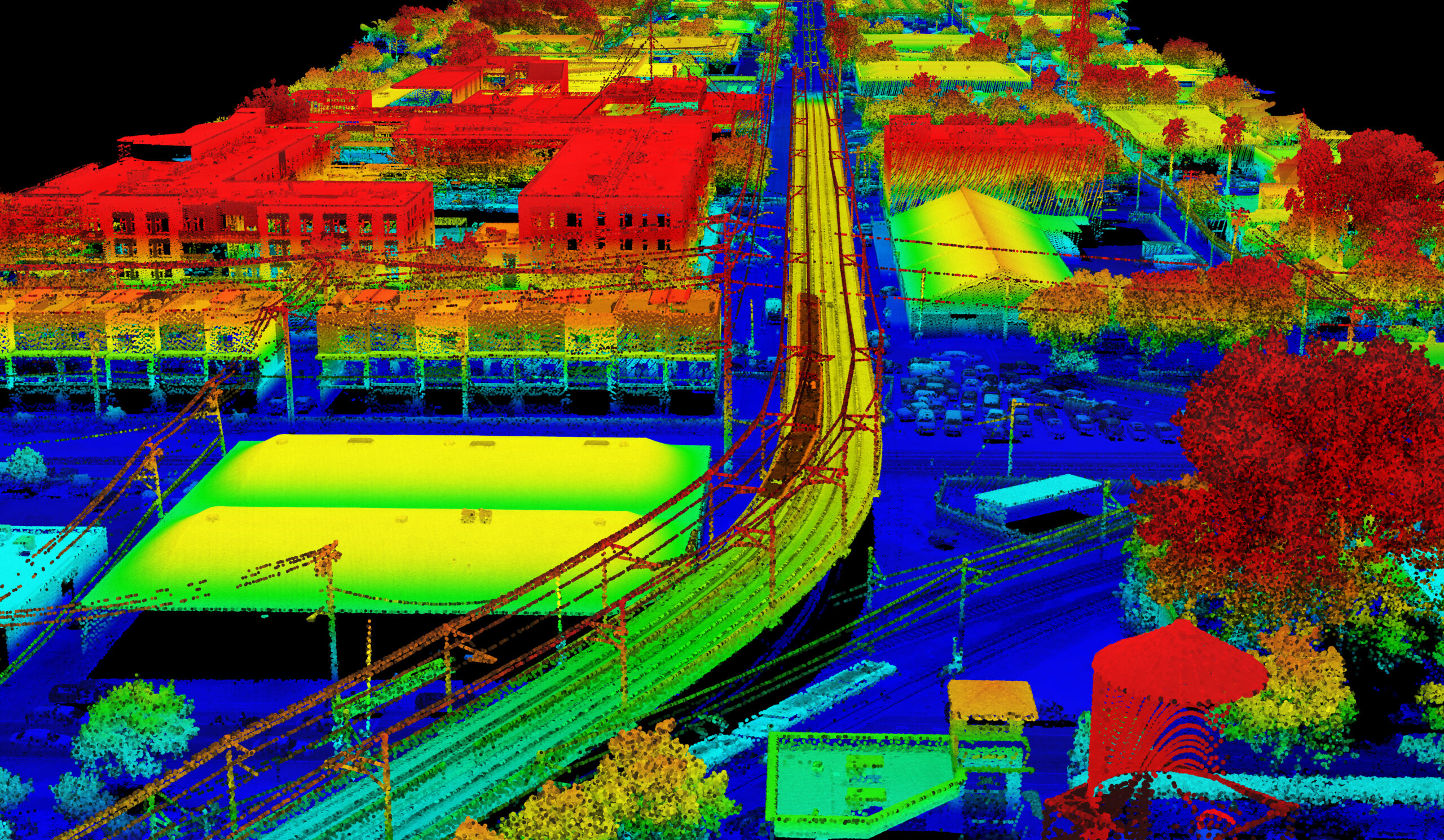

Track Alignment Analysis

NV5 Geospatial  supports rail companies in developing a Reference Track Surfacing (RTS) System by using high accuracy geodetic survey and lidar/imagery mapping. NV5 Geospatial’s solution incorporates mounting lidar and imagery equipment on a car for the duration of the project or leveraging existing lidar sensors owned by our rail clients. NV5 Geospatial will process and deliver these data focusing on accurately locating the track infrastructure features to develop existing corridor mapping and the horizontal and vertical track alignments. The information from the survey can be used to create precise geometric track alignments that provide safe, reliable and comfortable ride quality at high speeds.

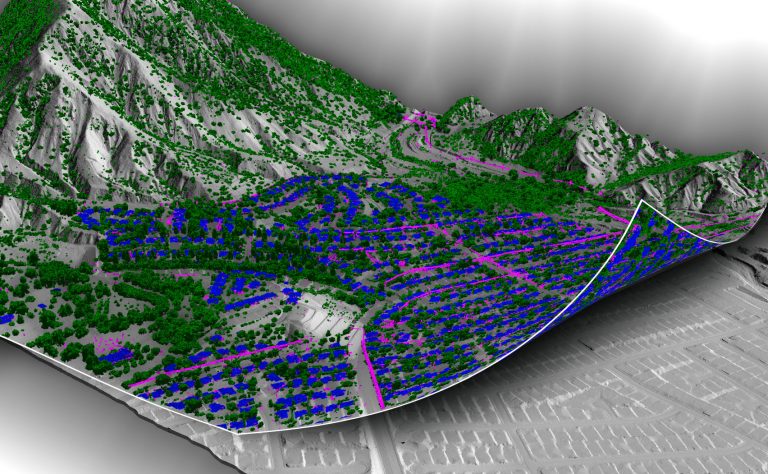

Engineering Survey & Planning

NV5 Geospatial supports transportation design with large-scale mapping solutions, including low level/high accuracy lidar and low altitude photogrammetric mapping. From this data, NV5 Geospatial provides dense elevation point clouds, TINs, and mapping depicting closely spaced contours and detailed existing conditions. In addition, our high resolution orthophotography is considered by many engineers to be an indispensable design tool. Planners, environmental scientists and engineers depend on our data and expertise to make decisions for corridor studies, route realignments, and road and bridge improvements. NV5 Geospatial has extensive experience supporting light rail, high speed rail, and interstate rail infrastructure as well as environmental assessments. Our services support the assessment and characterization of environmental conditions required for permitting applications.
