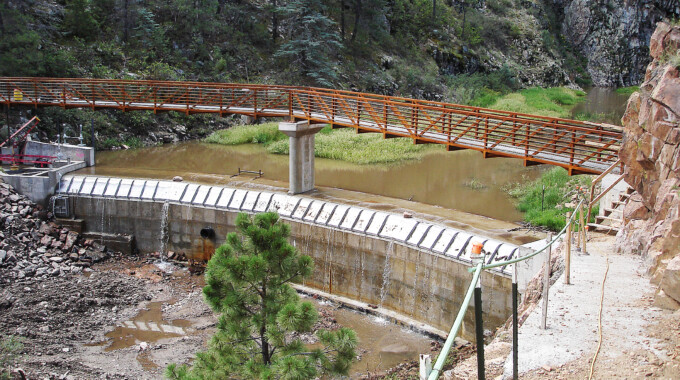

Gallinas Diversion Rehabilitation

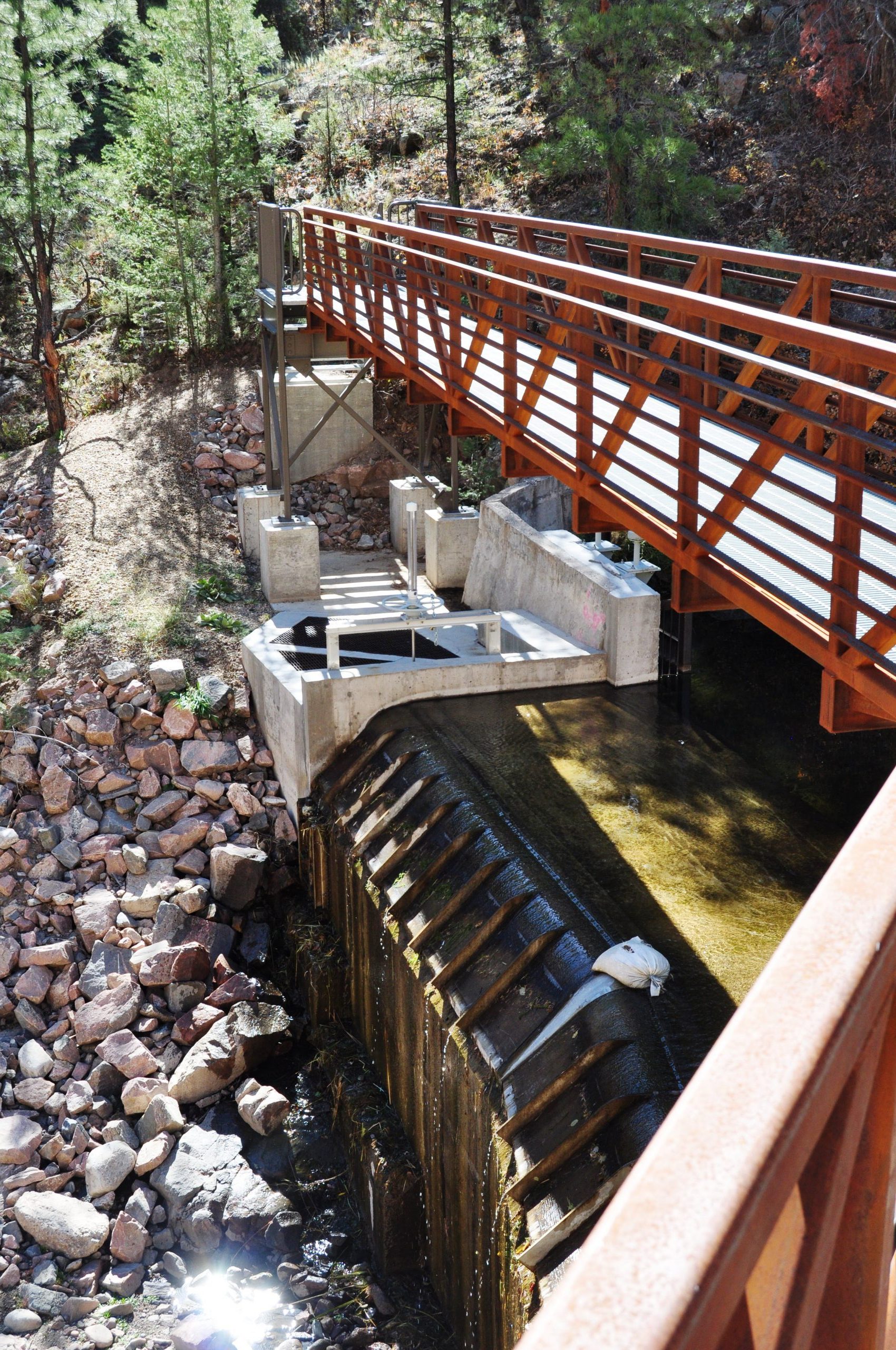

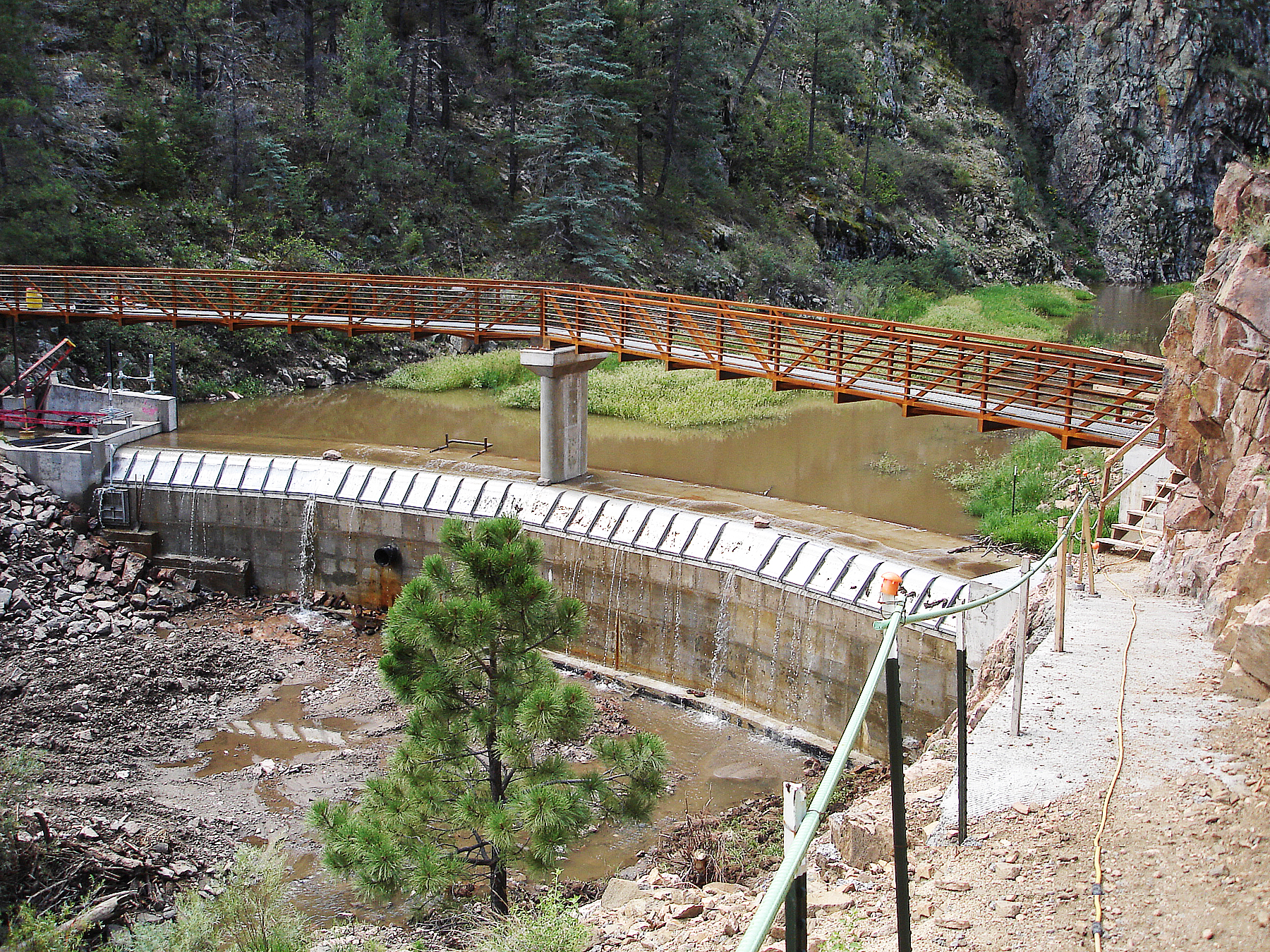

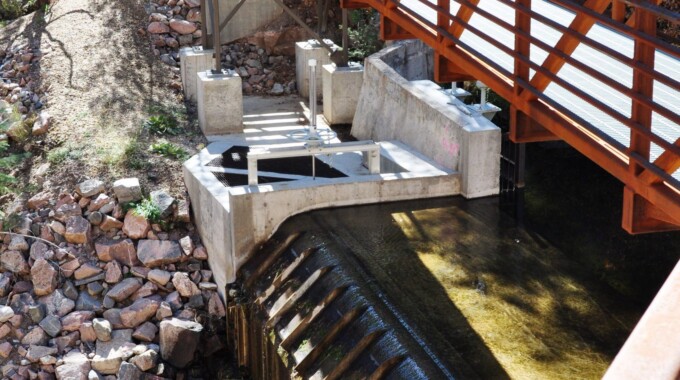

The Gallinas Diversion Structure project is a rehabilitation of an existing water diversion structure built on the Rio Gallinas northwest of the City of Las Vegas.

The City of Las Vegas obtains approximately 90% of its drinking water from the Gallinas River and was in desperate need of a new facility to provide an adequate drinking water supply with safe access and easier maintenance. The primary objectives of the project were to provide a dependable diversion from the Gallinas River for drinking water, provide a structure with reduced Operation and Maintenance costs, and provide the ability to install a Supervisory Control and Data Acquisition (SCADA) system in the future.

NV5:

  • Executed environmental mitigation and attainment of a US Army Corps of Engineers (USACE) 404 Permit
  • Provided improved access to the site
  • Provided for remote monitoring & control of the diversion valve system

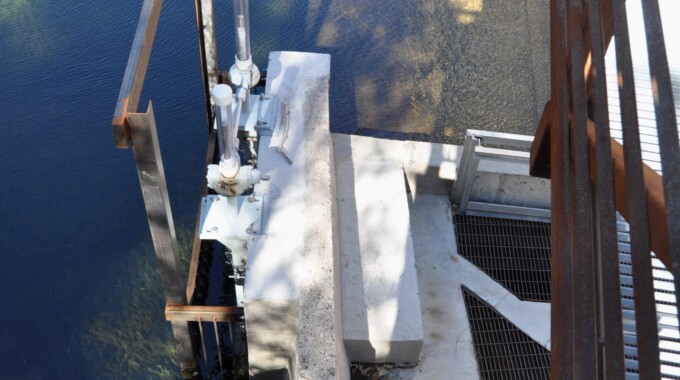

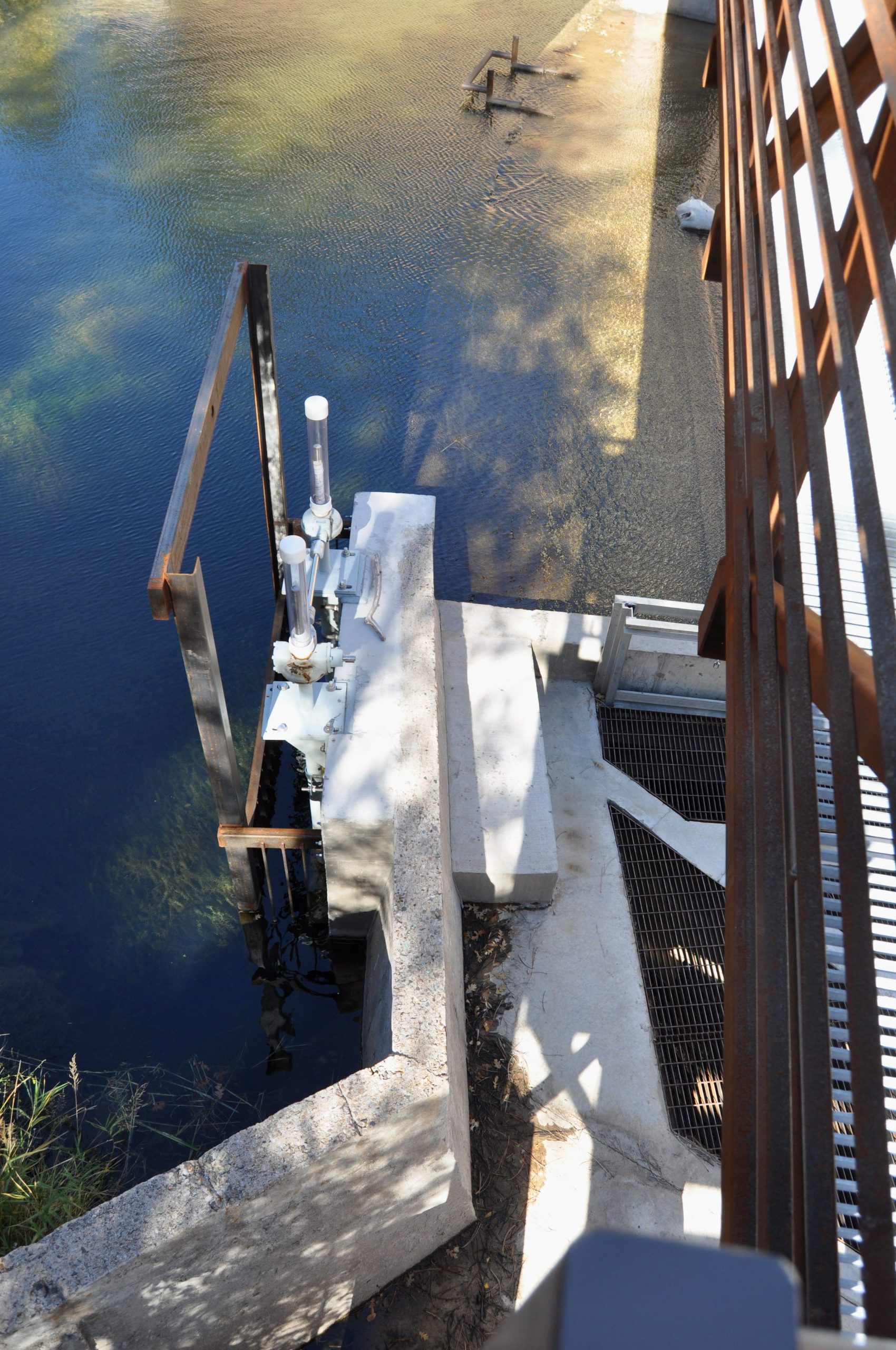

  • Rehabilitated the flush valve
  • Constructed a concrete buttress to provide long-term structure integrity

Location

Las Vegas, NV

Services

  • Facilities
  • Utilities Services & Power
  • Water/Environment

Awards

Honorable Mention for Structural Systems at ACEC’s Engineering Excellence Award Gala
