NV5 - Las Vegas City Hall

Las Vegas City Hall

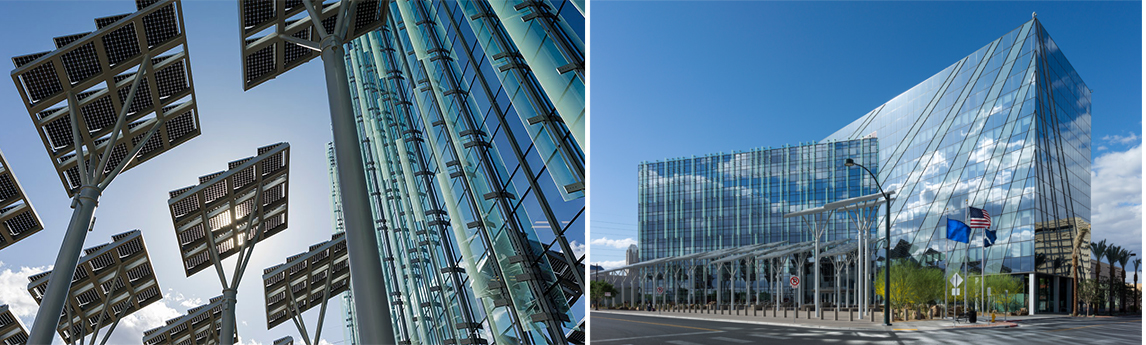

This seven-storey, 310,000 square foot facility was constructed to replace the existing City Hall building and served as the cornerstone of a downtown revitalization effort. The building consists of one concrete below-grade level, which houses back-of-house functions and provides a secured parking area for government officials. The above-grade portion is glass clad on a steel superstructure and houses government offices, council chambers, and the KCLV television studios.

The facility achieved LEED Gold and reduces annual energy cost by more than $500,000.

The building systems were designed with the assistance of full building energy and daylight modeling (performed by others). The mechanical system consists of a variable flow primary water-cooled chilled water plant and a heating hot water plant with condensing natural gas fired boilers. The electrical system consists of high efficiency lighting, day lighting controls, and photovoltaic — both at grade level and on the roof of the building.

The facility houses a 5,000 square foot data center supplied by standby generators with automatic paralleling switchgear, isolated redundant UPS system, clean agent suppression, and dedicated redundant HVAC systems.

Facebooktwitterlinkedin

Location

Las Vegas, NV

Client

City of Las Vegas

Services

  • Acoustical Design
  • Audiovisual Design
  • Mechanical Engineering
  • Electrical Engineering
  • Plumbing Engineering
  • Security & Surveillance Design
  • Sustainable Design & LEED Certification
  • Fire Protection & Life Safety Engineering
  • Information & Communication Technology Design

Key Facts

  • 310,000 SF
  • Approximate Cost $185M

Awards

LEED Gold
